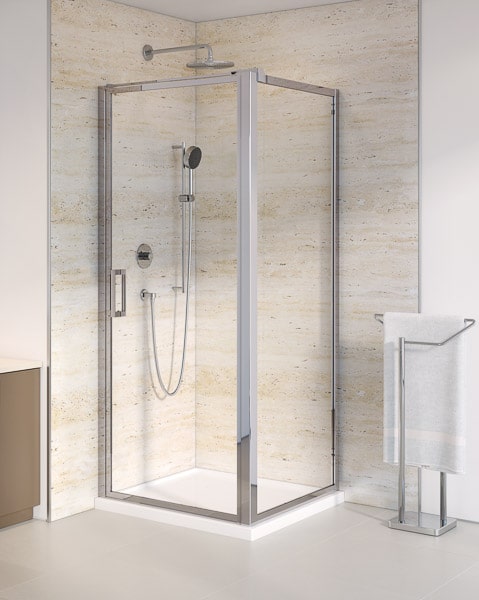

Fleurco - ELERA Cube

Product Details

5/16″ tempered glass, shower height corner pivot door with return fixed panel. In & out pivoting system with 90º inward and 90º outward operation. Reversible left or right door panel installation on wall or return panel. Sleek vertical handle. Magnetic closure for water-tight seal. FleurcoSEKUR+ Safety Protection (S.R.T) film provides an added layer of security. Microtek glass surface protection included.

Enclosure Name	ELERA Cube
Collection	ELERA
Enclosure Operation	Dual-Acting Pivot (90º in and out)
Unit Height	79″ (79-3/4″ to top of support bar)
Unit Width	Various options. See below
Glass	5/16″ Clear
Finishes	Chrome, Brushed Nickel, Matte Black
MICROTEK Glass Protection	Included
Customizable Dimensions	NO

Width Dimensions
FRONT	Model	Distance from side wall to center of wall jamb
	ELECP23	23-1/4″ to 23-7/8″
	ELECP25	25-1/4″ to 25-7/8″
	ELECP27	27-1/4″ to 27-7/8″
	ELECP29	29-1/4″ to 29-7/8″
	ELECP31	31-1/4″ to 31-7/8″
	ELECP33	33-1/4″ to 33-7/8″
RETURN SIDE	Return Panel Options	Finished wall to center of wall jamb
	32″	29-1/4″ to 29-7/8″
	36″	33-1/4″ to 33-7/8″
	42″	39-1/4″ to 39-7/8″
	48″	45-1/4″ to 45-7/8″
