Frameless – AGS94

Frameless - AGS94

Product Details

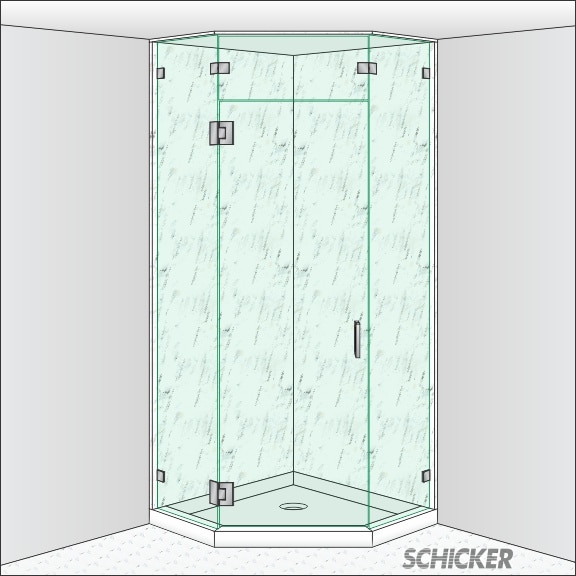

Three-sided neo-angle, hinged door for steam enclosures with two stationary panels (aka hinge and strike panels). 135-degree (or custom angle) corners. Door can be hinged off a hinge-panel or the wall by means of glass-to-glass, wall-mount or top/bottom pivot hinges. Unit height extends from the curb/floor to the ceiling or soffit. An operable transom can be added above door panel for steam ventilation, or a fixed transom to lower door panel height. All panels 3/8” frameless tempered glass. 90-degree outward opening capability with glass-to-glass or wall-mount hinges and 150-degree with pivot hinges. 6” or 8” c/c handle. Solid brass professional hardware. Totally customizable width and height. Translucent water-tight polycarbonate vinyl seals. Finish-matching threshold for leak-proof under door. Several glass types, hardware styles and finishes available. Additional stationary panels can be added to fit different enclosure shapes.
NOTES: When shower curb has custom angles (other than 135 degrees), then top/bottom pivot hinges will be used. An operable transom can ONLY be added if the shower pan angles are true 135-degrees.

Height Up to 96″
Width Up to 86″ (three enclosure sides combined)
Glass Thickness All panels are 3/8″
Glass Type Clear, Crystal Clear, Satin, Low Iron Satin, Rain, Rolled Glue Chip
Standard Hardware Finishes Polished Chrome, Polished Brass, Polished Nickel, Brushed Nickel, Oil Rubbed Bronze

Standard Finishes & Glass for All Glass Frameless Shower Doors

UltraGlas samples below are available in 3/8" and 1/2" thickness; and they can be used in most of our All Glass shower doors .

Enclosure Shape: Neo-angle Corner
