Frameless – AGS91PH

Frameless - AGS91PH

Product Details

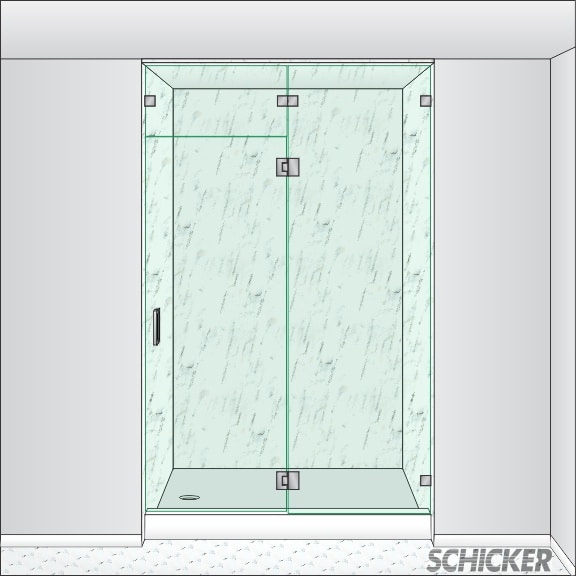

In-line, hinged door for steam enclosures with one stationary panel (aka hinge-panel). Door panel hinged off the hinge-panel. Unit height extends from the curb/floor to the ceiling or soffit. An operable transom can be added above door panel for steam ventilation, or a fixed transom to lower door panel height. All panels 3/8” frameless tempered heavy glass. Solid brass professional hardware. Glass-to-glass or top/bottom pivot hinges installation. 90-degree outward opening capability with glass-to-glass hinges and 150-degree with pivot hinges. 6” or 8” c/c handle. Custom width up to 60”. Translucent water-tight polycarbonate vinyl seals. Finish-matching threshold for leak-proof under door. Several glass types, hardware styles and finishes available.

MODEL AGS91PH
Height Up to 96″
Width Up to 60″
Glass Thickness All panels are 3/8″
Glass Type Clear, Crystal Clear, Satin, Low Iron Satin, Rain, Rolled Glue Chip
Standard Hardware Finishes Polished Chrome, Polished Brass, Polished Nickel, Brushed Nickel, Oil Rubbed Bronze


Standard Finishes & Glass for All Glass Frameless Shower Doors

UltraGlas samples below are available in 3/8" and 1/2" thickness; and they can be used in most of our All Glass shower doors .


Enclosure Shape: In-line Shower
