Frameless – AG94
Frameless - AG94

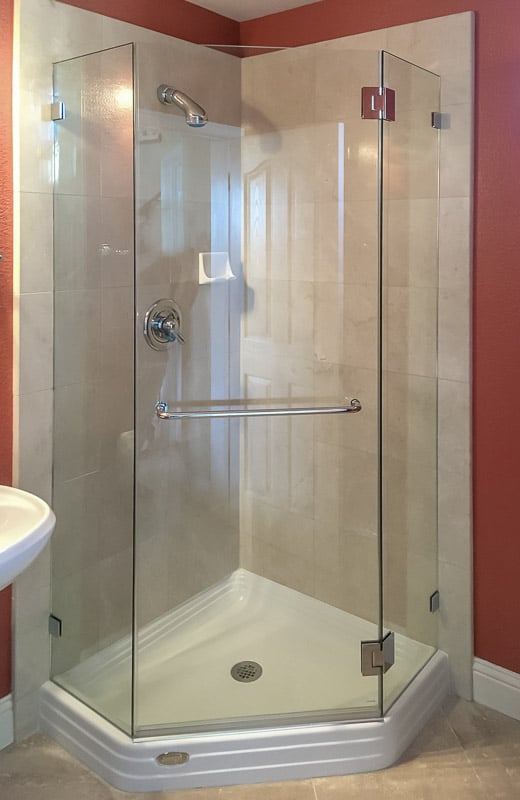

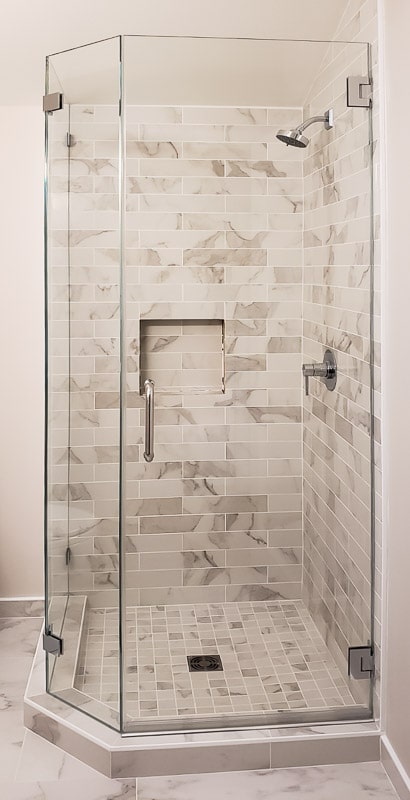

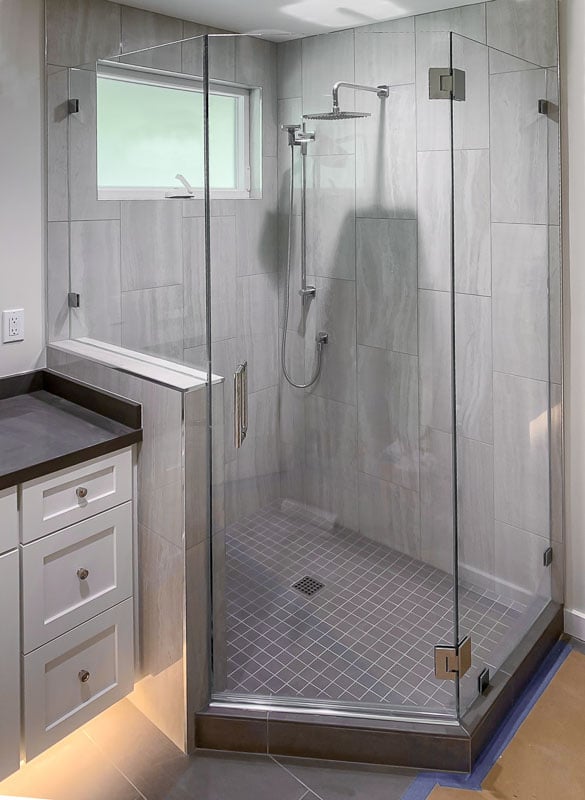

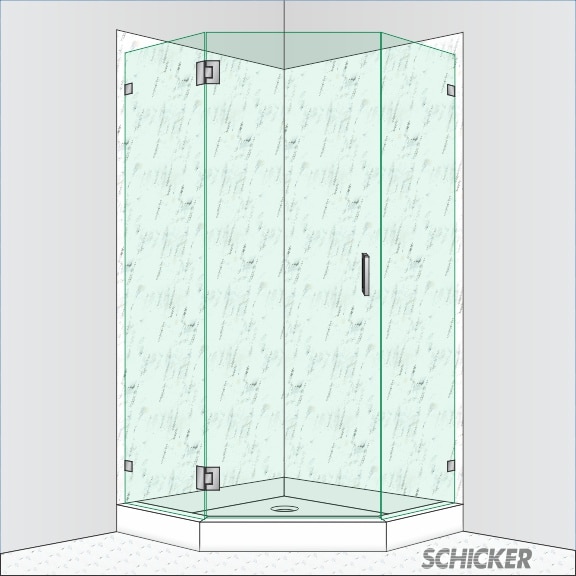

Three-sided neo-angle, shower height hinged door and two stationary panels. 135-degree (or custom) corners. Door can be hinged off a hinge-panel or wall. Frameless tempered heavy glass. 3/8” door panel and 1/2” stationary panels. Solid brass professional hardware. 6” or 8” c/c handle. 90-degree outward opening capability. Fully customizable width and height. Translucent water-tight polycarbonate vinyl seals. Finish-matching threshold for leak-proof under door. Several glass types, hardware styles and finishes available.

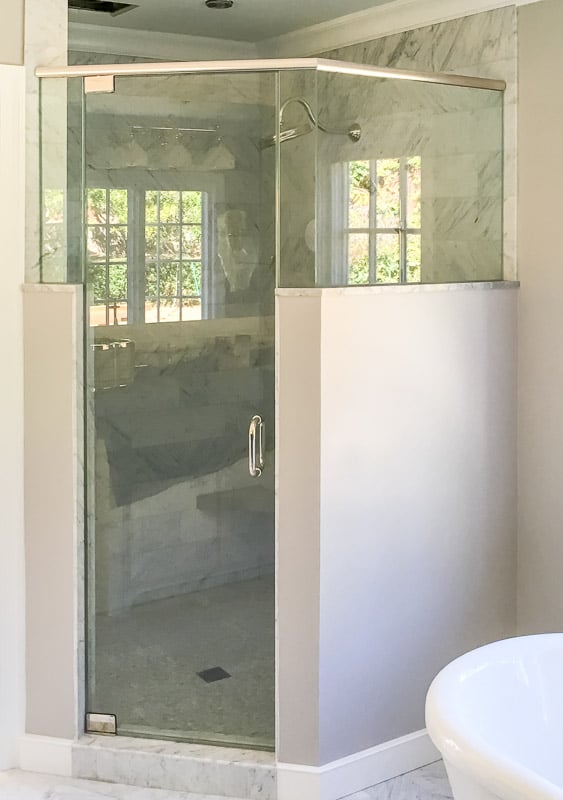

NOTE: When shower curb has custom angles (other than 135 degrees), then top/bottom pivot hinges will be used along with header; and all the glass panels will be 3/8″ thick.
| MODEL | AG94 |
|---|---|
| Height | 72″ |
| Width | Up to 86″ (three enclosure sides combined) |
| Glass Thickness | 3/8″ Door panel, 1/2″ Stationary panels |
| Glass Type | Clear, Crystal Clear, Satin, Low Iron Satin, Rain**, Rolled Glue Chip** |
| Standard Hardware Finishes | Polished Chrome, Polished Brass, Polished Nickel, Brushed Nickel, Oil Rubbed Bronze |
| NOTES | ** Rain and Rolled Glue Chip glass only available in 3/8″ and requires a header for stability |
Standard Finishes & Glass for All Glass Frameless Shower Doors
UltraGlas samples below are available in 3/8" and 1/2" thickness; and they can be used in most of our All Glass shower doors .
