Frameless – AG93PH

Frameless - AG93PH

Product Details

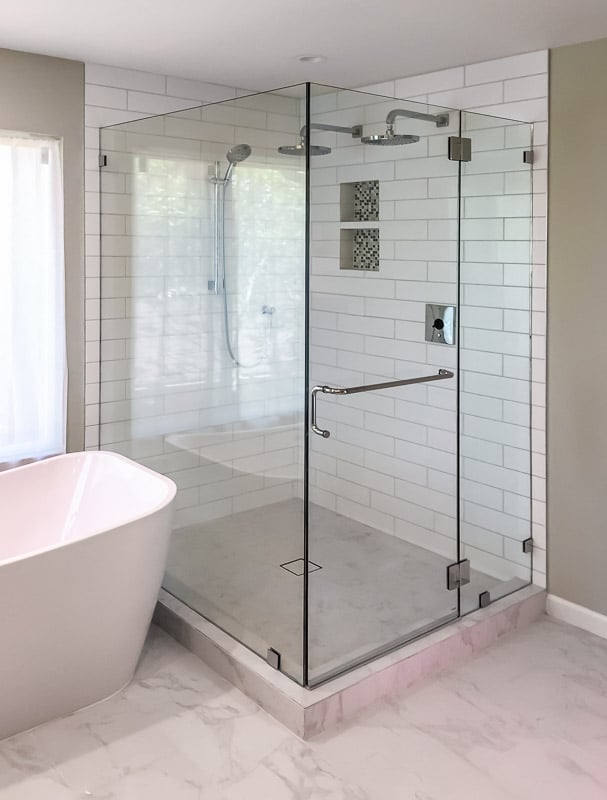

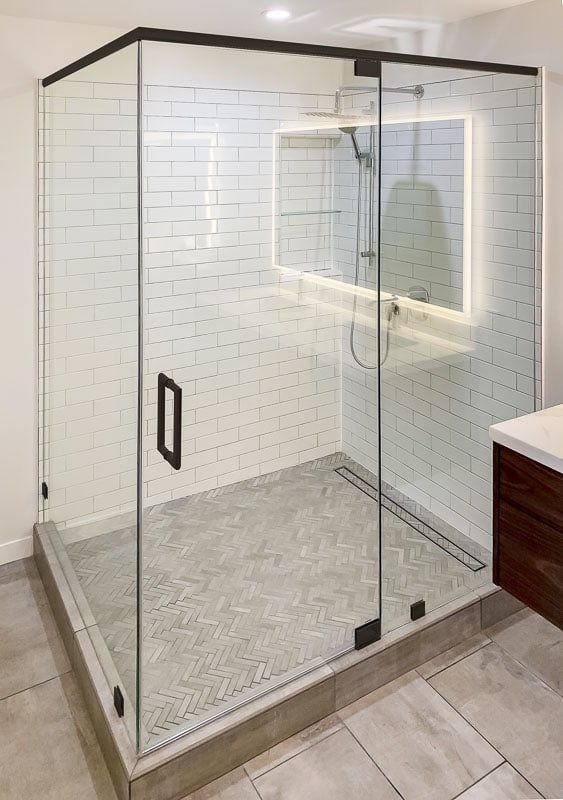

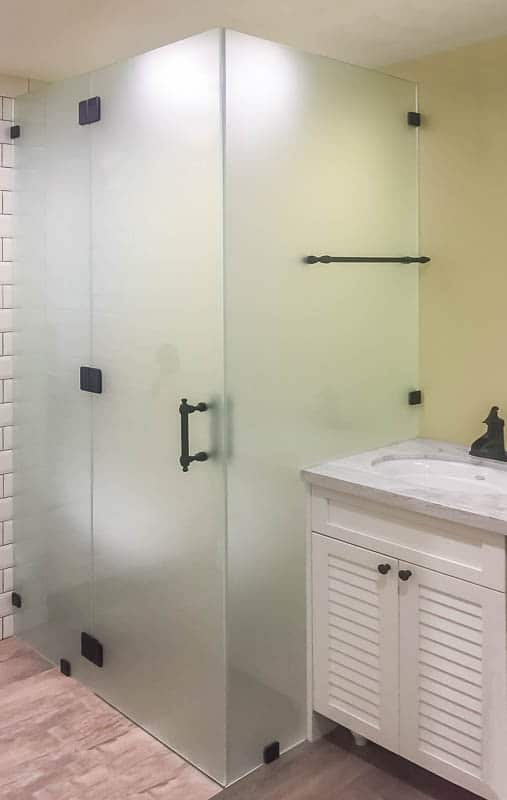

Two-sided, shower height hinged door with two stationary panels (aka hinge and return panels). 90-degree corner (no butt-joint) with door panel hinging off the hinge-panel and overlapping return-panel. Frameless tempered heavy glass. 3/8” door panel and 1/2” stationary panels. Solid brass professional hardware. 6” or 8” c/c handle. 90-degree outward opening capability. Fully customizable width and height. Translucent water-tight polycarbonate vinyl seals. Finish-matching threshold for leak-proof under door. Several glass types, hardware styles and finishes available.

MODEL AG93PH
Height 72″
Width Up to 84″ (combined front and return sides)
Glass Thickness 3/8″ Door panel, 1/2″ Stationary panels
Glass Type Clear, Crystal Clear, Satin, Low Iron Satin, Rain**, Rolled Glue Chip**
Standard Hardware Finishes Polished Chrome, Polished Brass, Polished Nickel, Brushed Nickel, Oil Rubbed Bronze
NOTES ** Rain and Rolled Glue Chip glass only available in 3/8″ and requires a header for stability


Standard Finishes & Glass for All Glass Frameless Shower Doors

UltraGlas samples below are available in 3/8" and 1/2" thickness; and they can be used in most of our All Glass shower doors .


Enclosure Shape: 2 Sided Shower
