Frameless – AG51
Frameless - AG51
Product Details

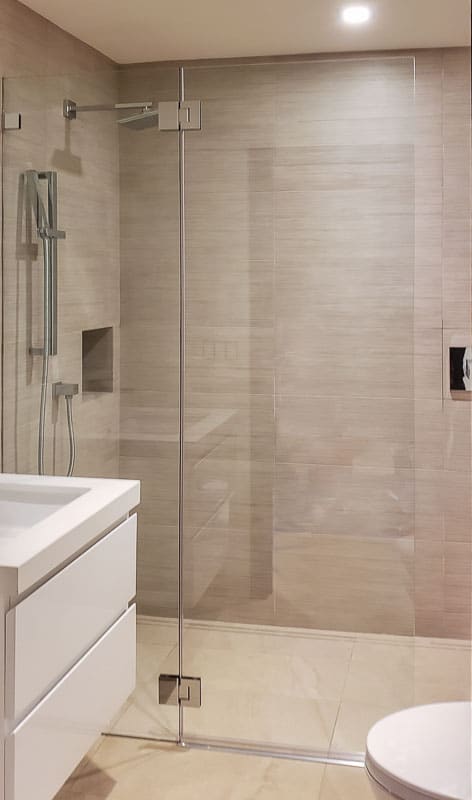

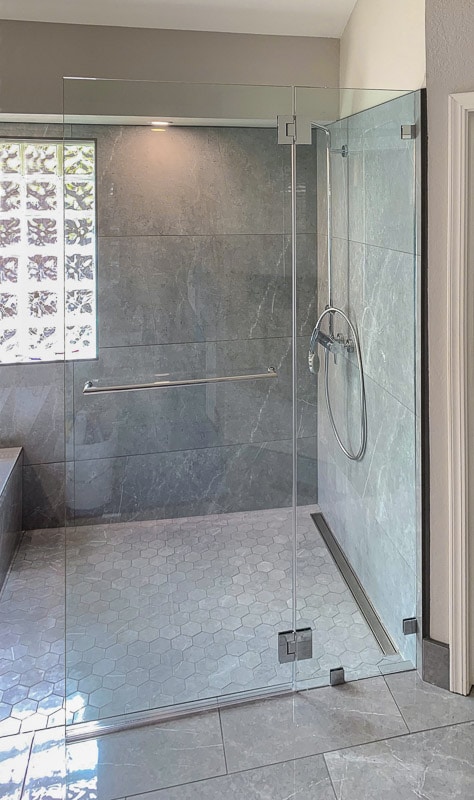

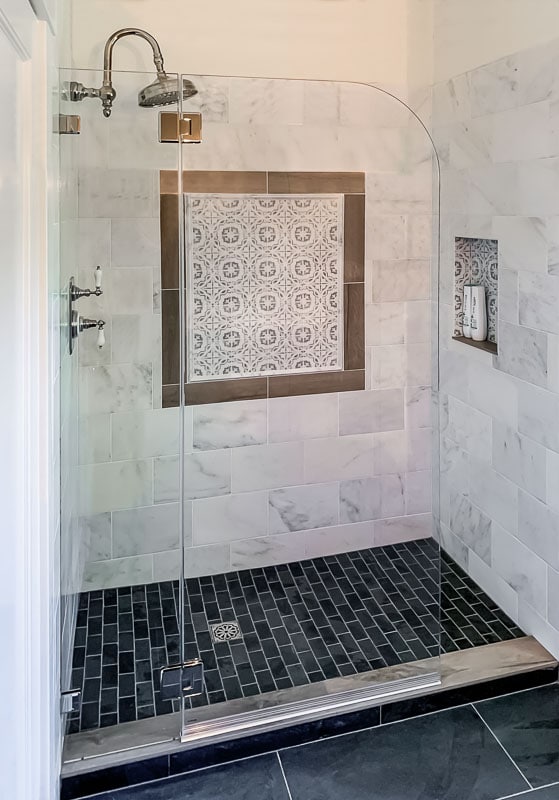

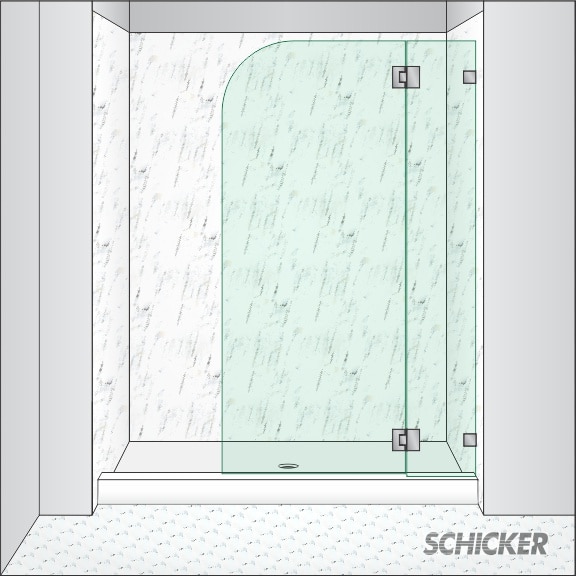

In-line, shower height hinged screen with one stationary panel. Dual-acting action, 90-degree outward and inward opening capability. 12″ radius top corner (or sharp corner upon request). Frameless tempered heavy glass. 3/8” door panel and 1/2” stationary panel. Solid brass professional hardware. Customizable width and height up to 42”W and 72”H (maximum door panel width is 30”). Translucent water-tight polycarbonate vinyl seals. Finish-matching threshold for leak-proof under door. Several glass types, hardware styles and finishes available.
| MODEL | AG51 |
|---|---|
| Height | 72″ |
| Width | Over All Up to 42″. Door panel up to 30″ |
| Glass Thickness | 3/8″ Door panel, 1/2″ In-line panel |
| Glass Type | Clear, Crystal Clear, Satin, Low Iron Satin, Rain, Rolled Glue ChipNote: Rain and Rolled Glue Chip glass only available in 3/8″ |
| Standard Hardware Finishes | Polished Chrome, Polished Brass, Polished Nickel, Brushed Nickel, Oil Rubbed Bronze |
Standard Finishes & Glass for All Glass Frameless Shower Doors
UltraGlas samples below are available in 3/8" and 1/2" thickness; and they can be used in most of our All Glass shower doors.
Enclosure Shape:
In-line Shower
